Ultrahigh Temperature Midscale Induction Bridgman/CZ Furnace

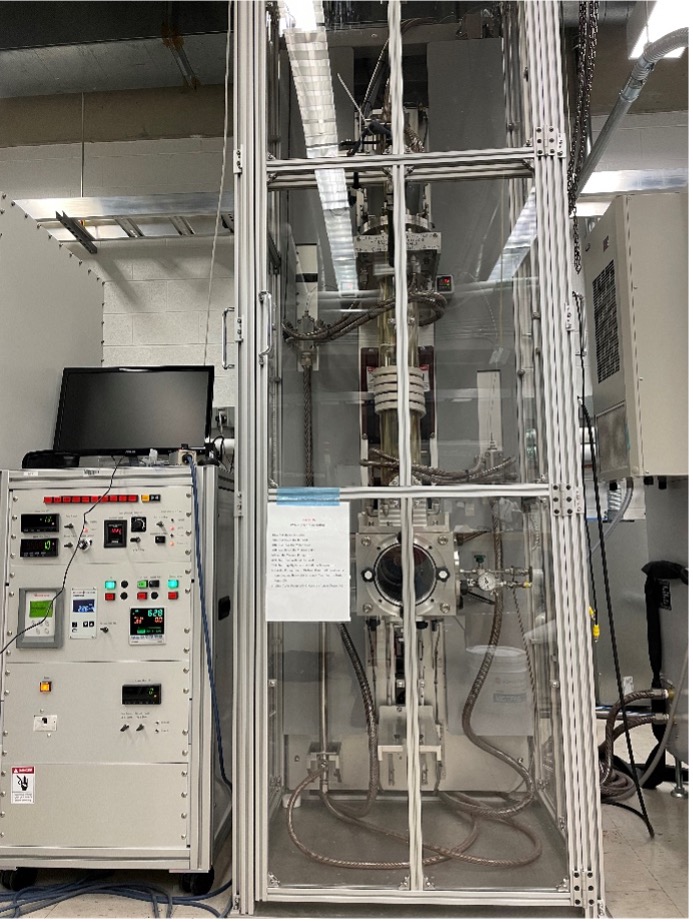

Induction Furnace Front



Induction melting is a versatile tool for the preparation of single crystals. Most lab-scale induction furnaces are designed to produce small specimens whereas industrial versions are designed for multi-inch diameter boules. The PARADIM Ultrahigh Temperature Induction furnace is designed to fill the size gap between these two limits, enabling preparation of ca. 1” diameter, multi-inch long, specimens.

It is configured for both Bridgman and Czochralski crystal growths under high vacuum and inert atmospheres, and temperatures above 2000 °C for the largest specimens.

It has configurable growth rates of 0.01 – 300 mm/hr, with pyrometry-based temperature control. In 2021, advanced optical access to the growth environment, was installed, enabling tuning of the growth parameters in real-time.

Induction Floating zone Furnace

The ultrahigh temperature induction furnace can be used to grow cm-to-inch scale crystals of intermetallics, chalcogenides, and halides, such as the two different specimens (a halide and a chalcogenide) shown here.

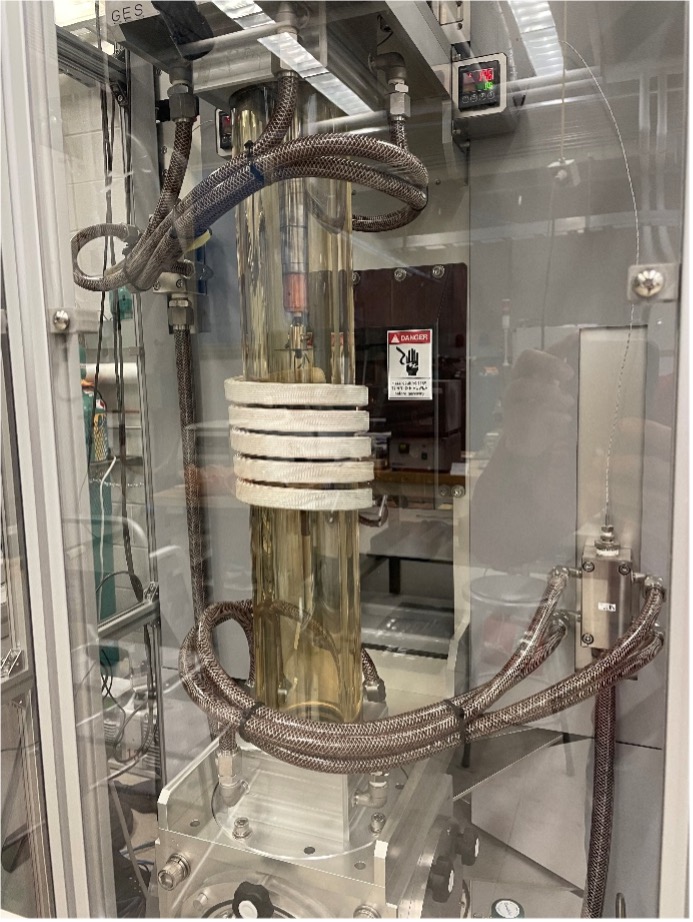

Inductin Furnace side





Sample Publications Using this Instrument

A. Legros, S.-S. Zhang, X. Bai, H. Zhang, Z. Dun, W.A. Phelan, C.D. Batista, M. Mourigal, and N.P. Armitage, "Observation of 4- and 6-Magnon bound-States in the Spin-Anisotropic Frustrated Antiferromagnet FeI2," Phys. Rev. Lett. 127, 267201 (2021).
